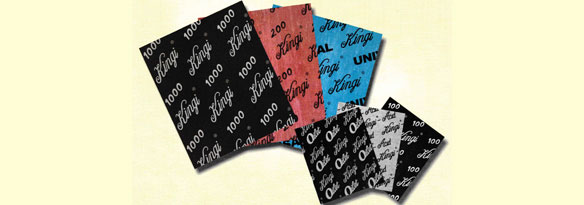

Both asbestos and non-asbestos jointing sheets are available from our company. The <INGI>® Compressed Fiber Jointing Sheets are manufactured following international standards for the manufacturing process and test procedures . The test results are measured in accordance with ASTM F-104.
APPLICATION:
Piping, pipe flanges, and valve bonnets in thermal or nuclear power plants , refineries , chemical plants , steel plants, and vessels . Covers and joints in towers , tanks , boilers , pressure vessels , heat exchangers , furnaces , and various types of industrial machinery , including pumps, internal combustion engines, gasoline/diesel engines, and compressors, etc.
SPECIFICATIONS
<INGI>® jointing is available in sheets as well as cut-out gaskets to fit ANSI, API, JIS, DIN, or other flange standards. It is also available in anti-stick, anti-corrosion, and anti-leak varieties, for extreme pulsating pressure, high temperatures, and all media.
►SHEETING
| STANDARD DIMENSIONS | |
| Standard Sheet Size | 1,270 x 3,810 / 1,500 x 2,000 (mm) |
| Standard Sheet Thickness | 0.5 / 0.8 / 1.0 / 1.5 / 2.0 / 3.0 (mm) |
| Other sizes and thicknesses are available on request. | |
►CUT-OUT GASKETS
Please specify the following:
- Media, operating temperature, and pressure.
- Flange standard – nominal sizes and – pressure rating.
For non-standard items, please specify gasket dimensions complete with a drawing if possible.
Note: Gaskets with an O.D. larger than the sheet material are fabricated with joints.
Kingi ® Acid
Recommended Services
Designed for acid services.
Widely used in the chemical industry.
Suitable for strong organic and inorganic acid.
Operating Guidelines
Max. Temperature : 150°C
Max. Pressure: 150 psi (20 Bar)
Kingi ® General
Recommended Services
Economical sheet for general services.
such as steam, gases, water, and non-aggressive media.
Operating Guidelines
Max. Temperature: 350°C.
Max. Pressure: 350 psi (65 Bar)
Kingi ® 200
Recommended Services
Has the same service application as Kingi General but with higher temperature & pressure.
Operating Guidelines
Max. Temperature: 400°C.
Max. Pressure: 600 psi (100 Bar).
Kingi ® 100
Recommended Services
High quality material for the oil and petrochemical industries.
Suitable for steam, gases, water, and other non-aggressive media.
Operating Guidelines
Max. Temperature: 510°C.
Max. Pressure: 1900 psi (130 Bar).
Kingi ® Oilet
Recommended Services
Especially recommended for petrols, oils, solvents of all types including chlorinated hydrocarbon and aromatics.
Operating Guidelines
Max. Temperature: 500°C.
Max. Pressure: 1900 psi (130 Bar).
Kingi ® Universal
Recommended Services
Suitable for extreme pressures and virtually all media, including hydro carbons, alkalis, and medium strength acids.
Operating Guidelines
Max. Temperature: 550°C.
Max. Pressure: 2000 psi (140 Bar).
Kingi ® 1000
Recommended Services
Wire insert reinforced for higher pressures, and temperatures.
Operating Guidelines
Max. Temperature: 550°C.
Max. Pressure: 2900 psi (200 Bar).
Kingi Sil® 8000
Recommended Services
The <KING SIL>® Compressed Non-Asbestos Fiber Jointing Sheet is a gasket sheet made of synthetic fibers, rubber, and inorganic filler components, which is calendared under high pressure and temperature to create a high-quality jointing sheet material.
Operating Guidelines
Max. Temperature: 430°C.
Max. Pressure: 60 kgf / cm².
